K04 40.50/53.00mm 6+6 blades performance aluminum 2618/milling/billet compressor wheel

1. K04 40.50/53.00mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel

2.SIZE:

Nose diameter:10.30mm

inducer:40.50mm

Exducer:53.00mm

Tapered tip exducer :56.83mm

tip height:4.32mm

trailing angle:45 degree

Superback:2.60mm

Overall height:27.80mm

bore size :4.61mm

Bore type:through

cutback:2.0mm

splitter height:13.60mm

sp height angle:0.00

Blade height:20.50mm

6+6 blades

It is custom size ,please check carefully before buying.

tapered tip angle:30 degree

4.Good quality and competitive price

5.Please send email to me or talk to me on online ,if you want to know more details.

All the billet compressor wheels have been balanced.

skype:maxabledieselparts

wechat/whatsapp:+86-18018657719

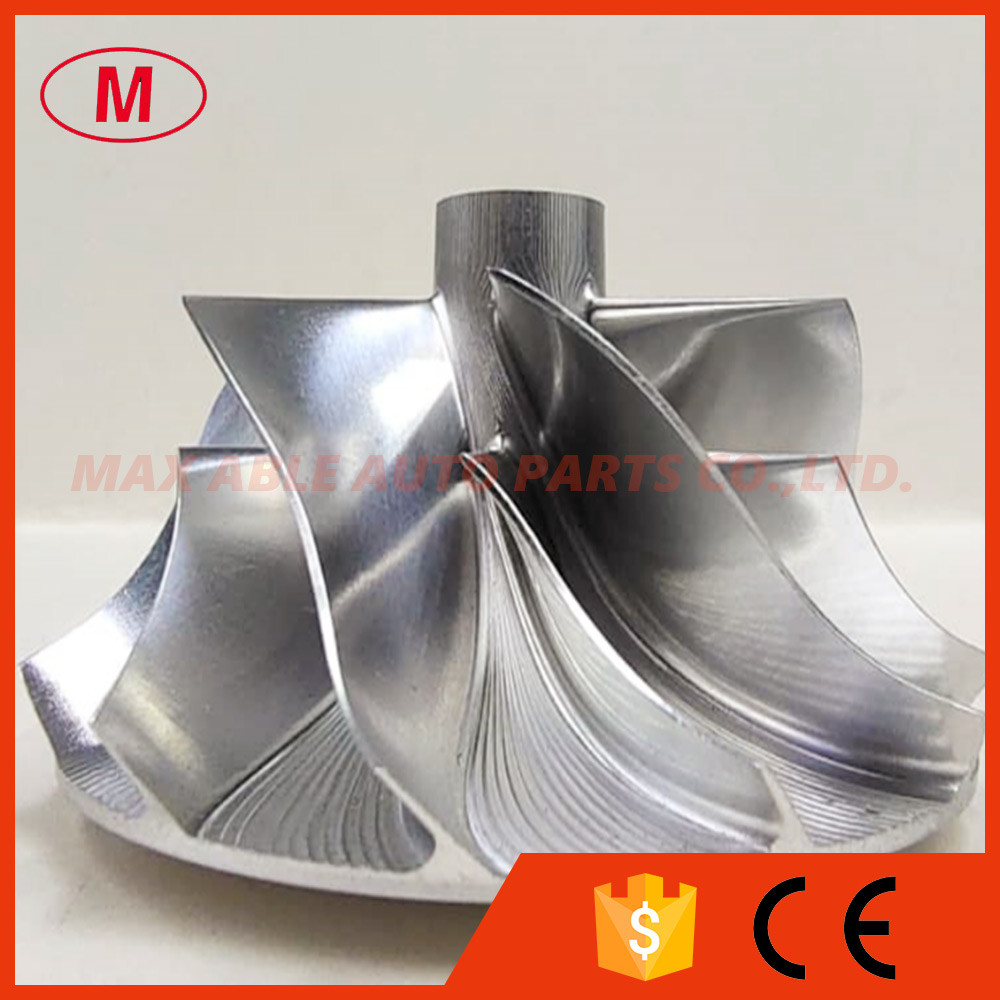

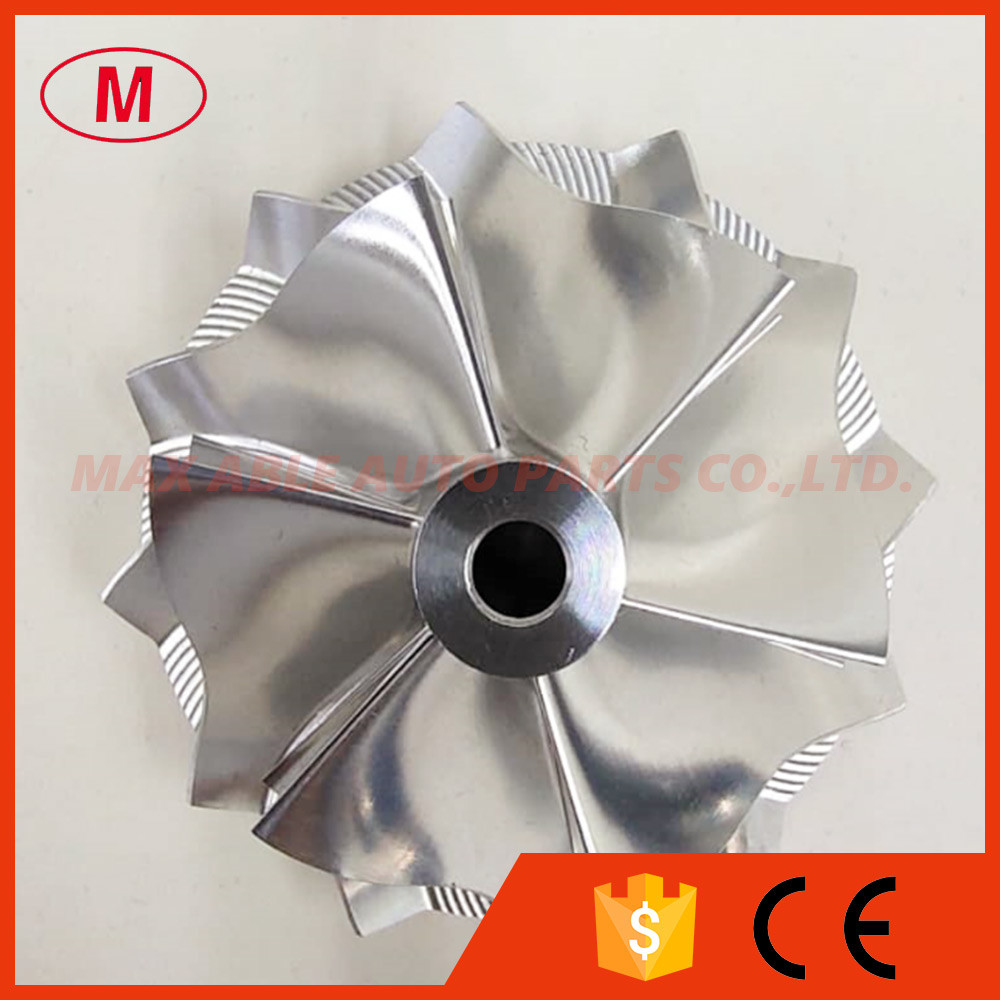

K04 40.50/53.00mm 6+6 blades performance aluminum 2618/milling/billet compressor wheel Images
