GTA4508R 7+7blades 79.85/108.04mm high performance milling/aluminum 2618/billet compressor wheel for 800270-0001

Product Categories

Max Able Auto Parts Co.,Ltd.

Contact Now

Brand Name : NO

Model Number : GTA4508R

Certification : ISO

MOQ : 1PC

Price : DISCUSS

Payment Terms : T/T, Western Union, MoneyGram,PAYPAL

Supply Ability : 1000PCS

Delivery Time : 3-7 DAYS

Packaging Details : neutral packing

Contact Now

1.Model:GTA4508R forward

2.GTA4508R 7+7 blades 79.85/108.04mm high performance Billet/milling/aluminum 2618 compressor wheel for 800270-0001/451888-0045

3.Size:

Nose diameter:18.97mm

Inducer:79.85mm

exducer:108.04mm

Tapered tip exducer:116.65mm

Tip height:8.45mm

Superback:9.52mm

bore size :8.25mm

Overall height:64.00mm

Cutback:8.0mm

Trailing Angle:50

Bore type:Threaded-M8x1.25LHT

Sp height Angle:0.00

Splitter Height:23.00mm

Blade height:44.72mm

7+7 blades forward

It is custom size ,please check carefully before buying.

Tapered tip Angle:30 degree

Application:

800270-0001

451888-0045

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.

GTA4508R 7+7blades 79.85/108.04mm high performance milling/aluminum 2618/billet compressor wheel for 800270-0001

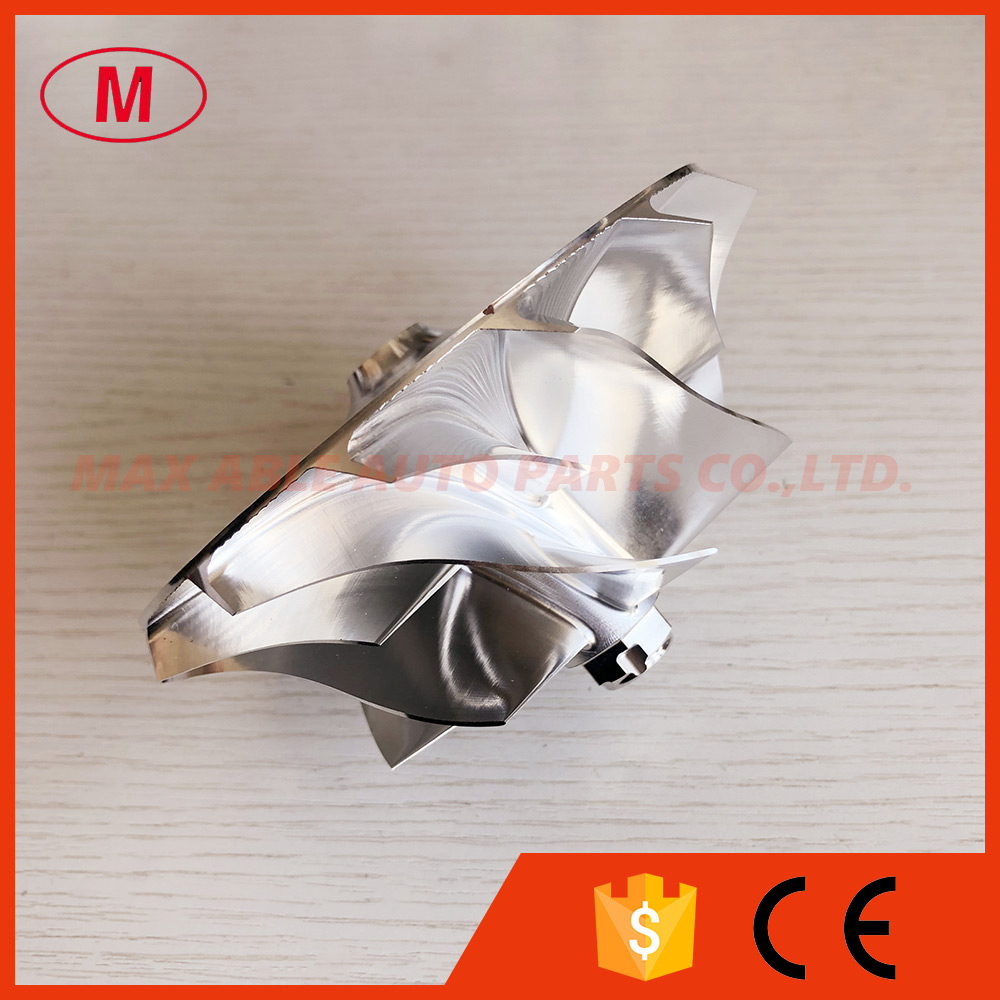

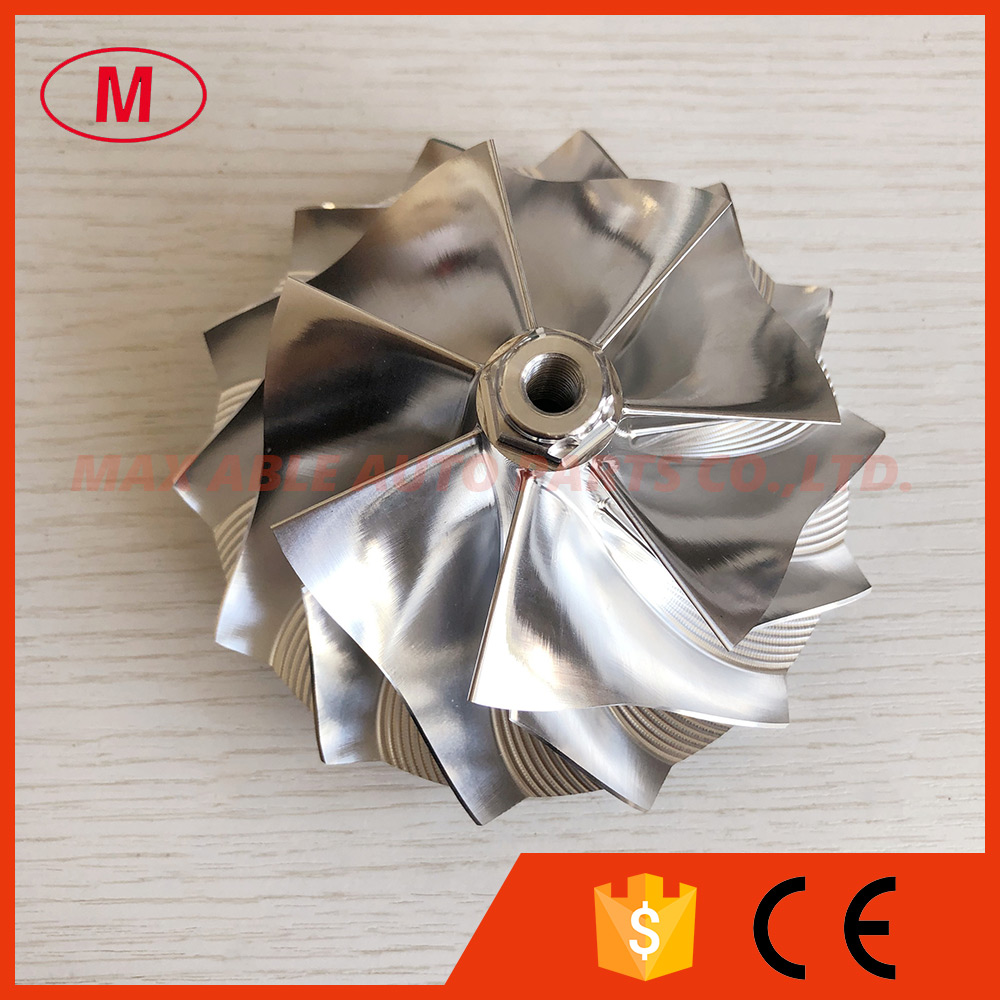

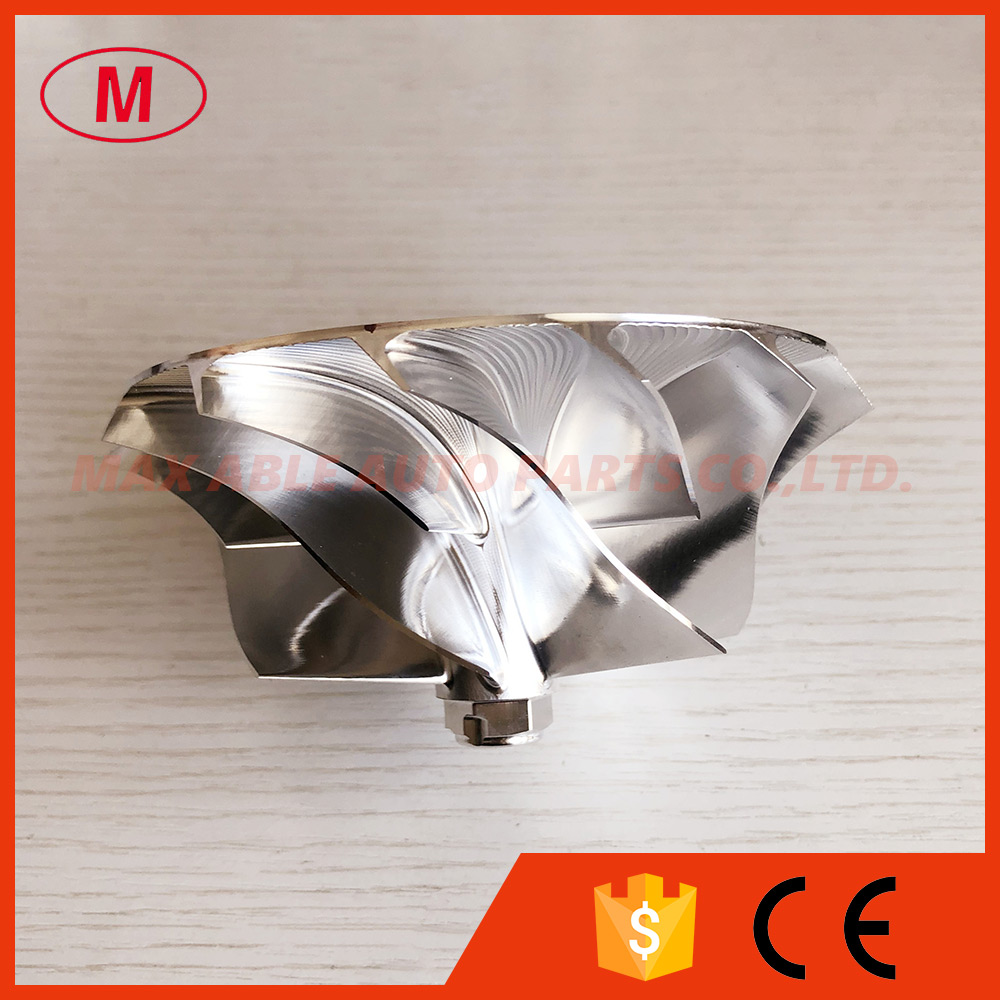

GTA4508R 7+7blades 79.85/108.04mm high performance milling/aluminum 2618/billet compressor wheel for 800270-0001 Images
