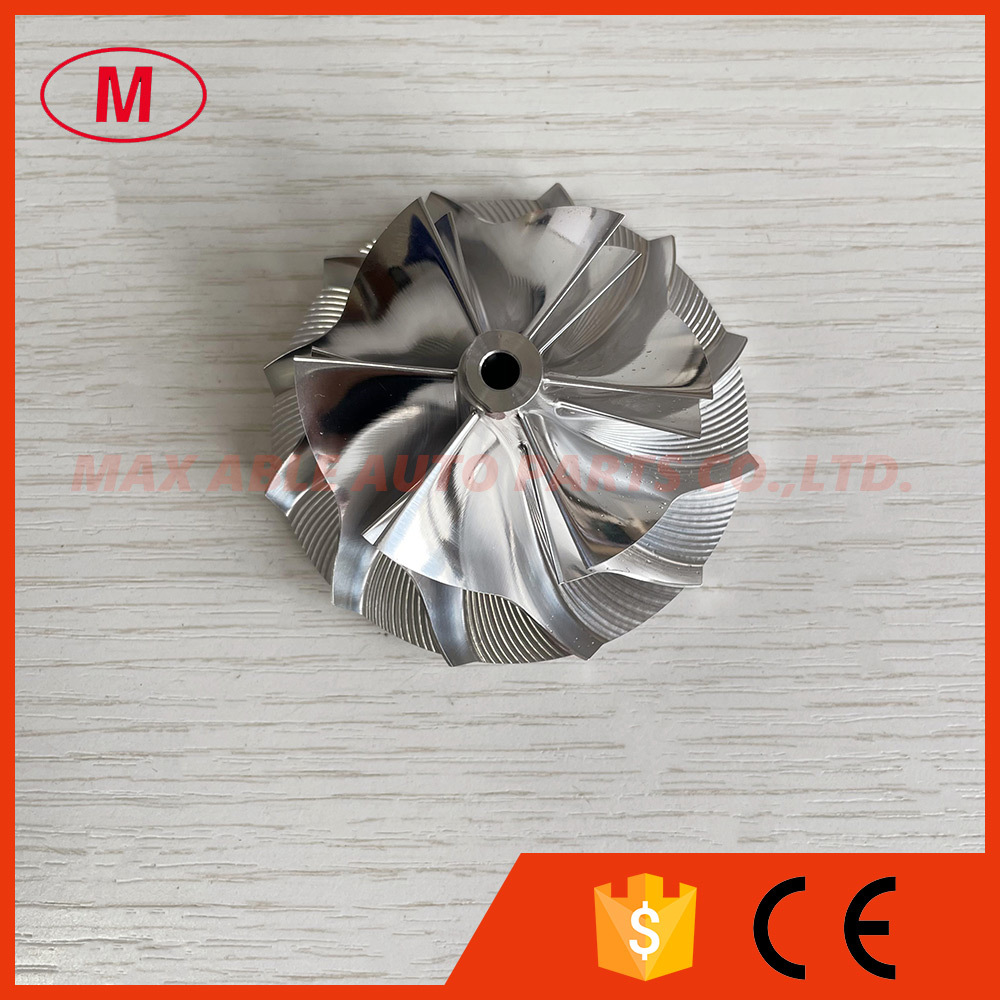

K04 Forward 51.00/68.00mm 6+6 Blades Turbo Milling/aluminum 2618/billet Compressor Wheel

Product Categories

Max Able Auto Parts Co.,Ltd.

Contact Now

Brand Name : NO

Model Number : K04

Certification : ISO

MOQ : 1PC

Price : DISCUSS

Payment Terms : T/T, Western Union, MoneyGram,PAYPAL

Supply Ability : 1000PCS

Delivery Time : 3-7 DAYS

Packaging Details : neutral packing

Contact Now

1. MODEL: K04 Forward

2.K04 Forward 51.00/68.00mm 6+6 blades turbo Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:10.20mm

Inducer:51.00mm

exducer:68.00mm

Tapered tip exducer:70.53mm

Tip height:4.80mm

Superback:2.67mm

bore size :4.61mm

bore type:through

Overall height:29.82mm

Cutback:3.0mm

Trailing Angle:60 degree

Sp height angle:-5.30

Blade height:25.08m

Splitter height :17.50mm

6+6blades forward

It is Custom size ,please check carefully before buying.

Tapered tip Angle:18.4 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.
