CT26 6+6 Blades 53.11/71.00mm Turbo Aluminum 2618/milling/billet Compressor Wheel

1. MODEL:CT26 Forward

2.CT26 53.11/71.00mm 6+6 Blades Turbocharger Billet/aluminum 2618/milling compressor wheel

3.Size:

Nose diameter:14.82mm

inducer:53.11mm

Exduder:71.00mm

Tapered tip exducer:75.80mm

Tip height:5.16mm

Superback:-1.37mm

Overall height:32.27m

bore size :6.50mm

bore type:through

Trailing angle:70 degree

Cutback:0.0mm

Blades height:30.06mm

SP height Angle:-9.50

Splitter height:20.65mm

6+6 blades

Forward rotation

Tapered tip Angle:30 degree

It is Custom size ,please check carefully before buying.

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.

All the billet compressor wheels have been balanced.

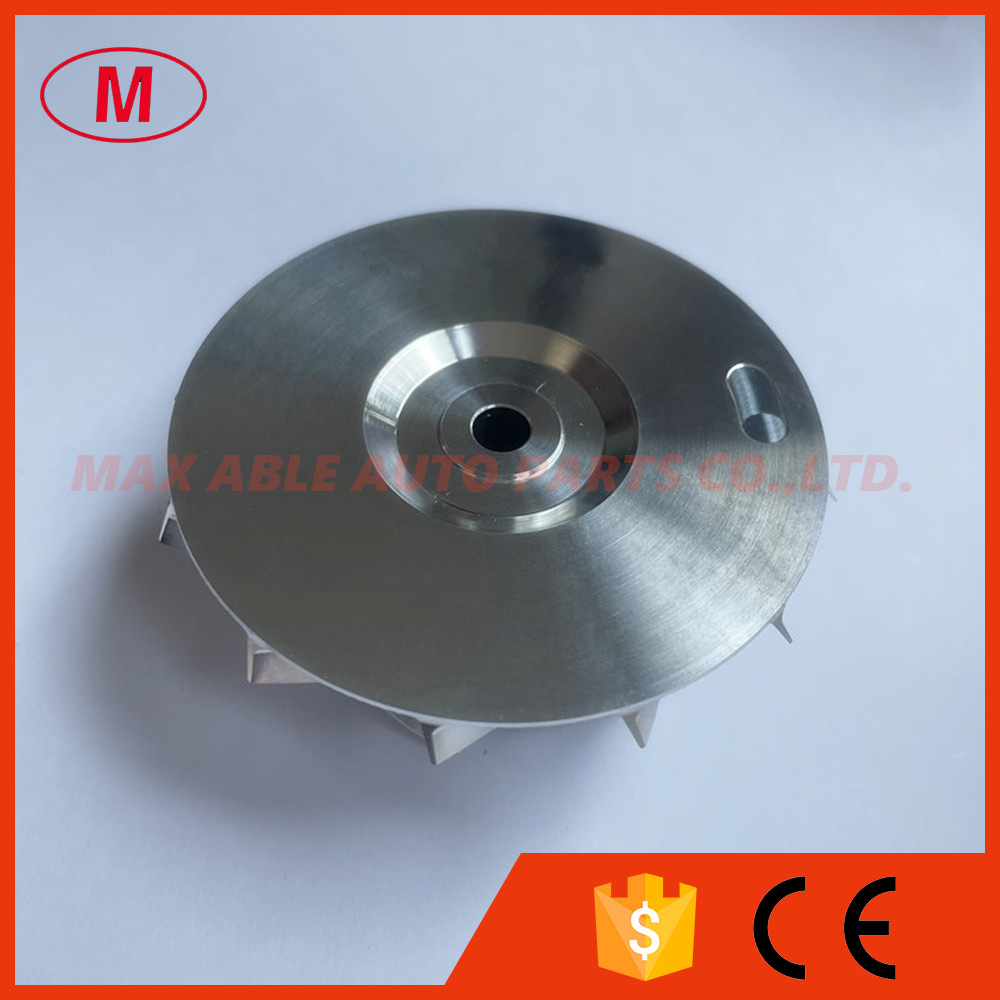

CT26 6+6 Blades 53.11/71.00mm Turbo Aluminum 2618/milling/billet Compressor Wheel Images
