RHF4V 39.34/52.50mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel for VB17 TOYOTA

Product Categories

Max Able Auto Parts Co.,Ltd.

Contact Now

Model Number : RHF4V

MOQ : 1PC

Payment Terms : TT,western union ,paypal

Delivery Time : 3-7 days after payment

Packaging Details : Delphi

Contact Now

1. MODEL:RHF4V forward

2.RHF4V 39.34/52.50mm 6+6 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel for VB17 toyota

3.Size:

Nose diameter:9.92mm

Inducer:39.34mm

exducer:52.50mm

Tip height:4.94mm

Superback:3.74mm

bore size :5.10mm

Overall height:28.66mm

Trailing angle:45 degree

Cutback:0.0

SP Height angle:-7.00

Blades height:22.65mm

Splitter height:15.35mm

6+6blades

forward rotation

Tapered tip angle:0 degree

It is for OE compressor housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

RHF4V 39.34/52.50mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel for VB17 TOYOTA

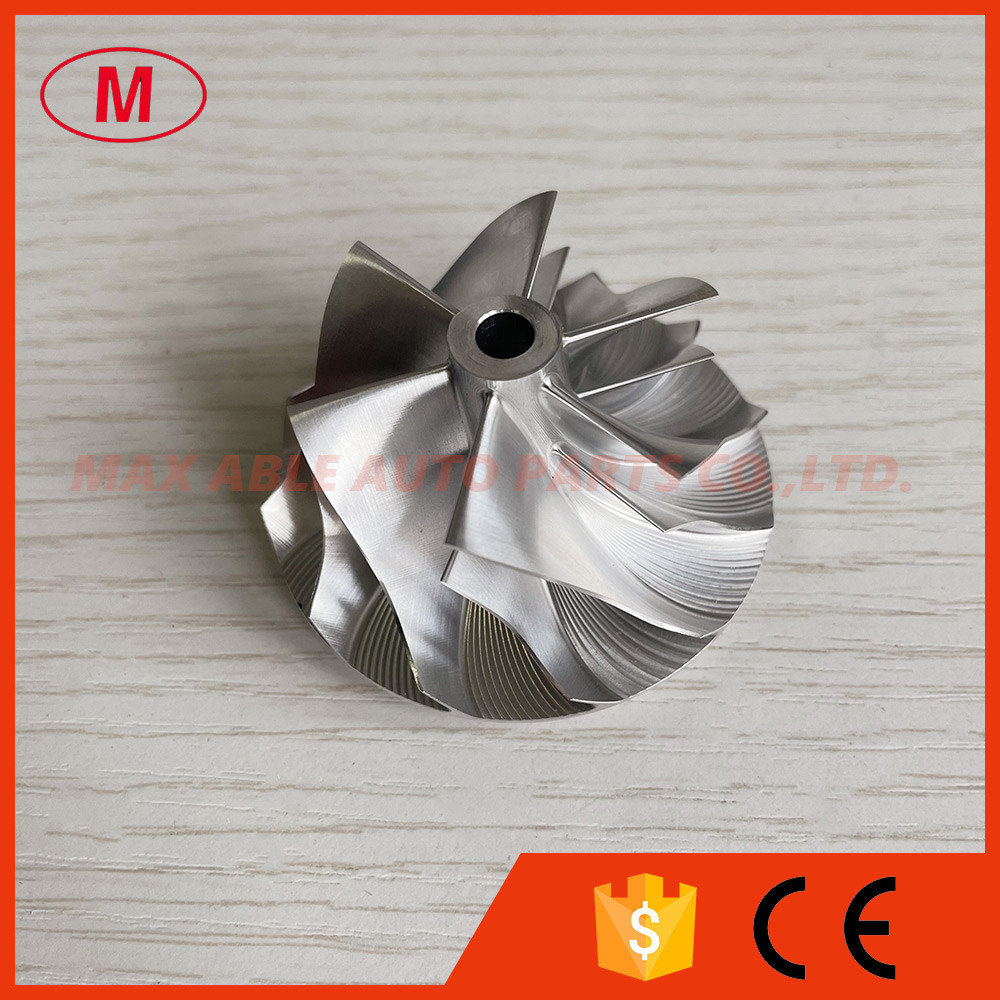

RHF4V 39.34/52.50mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel for VB17 TOYOTA Images
